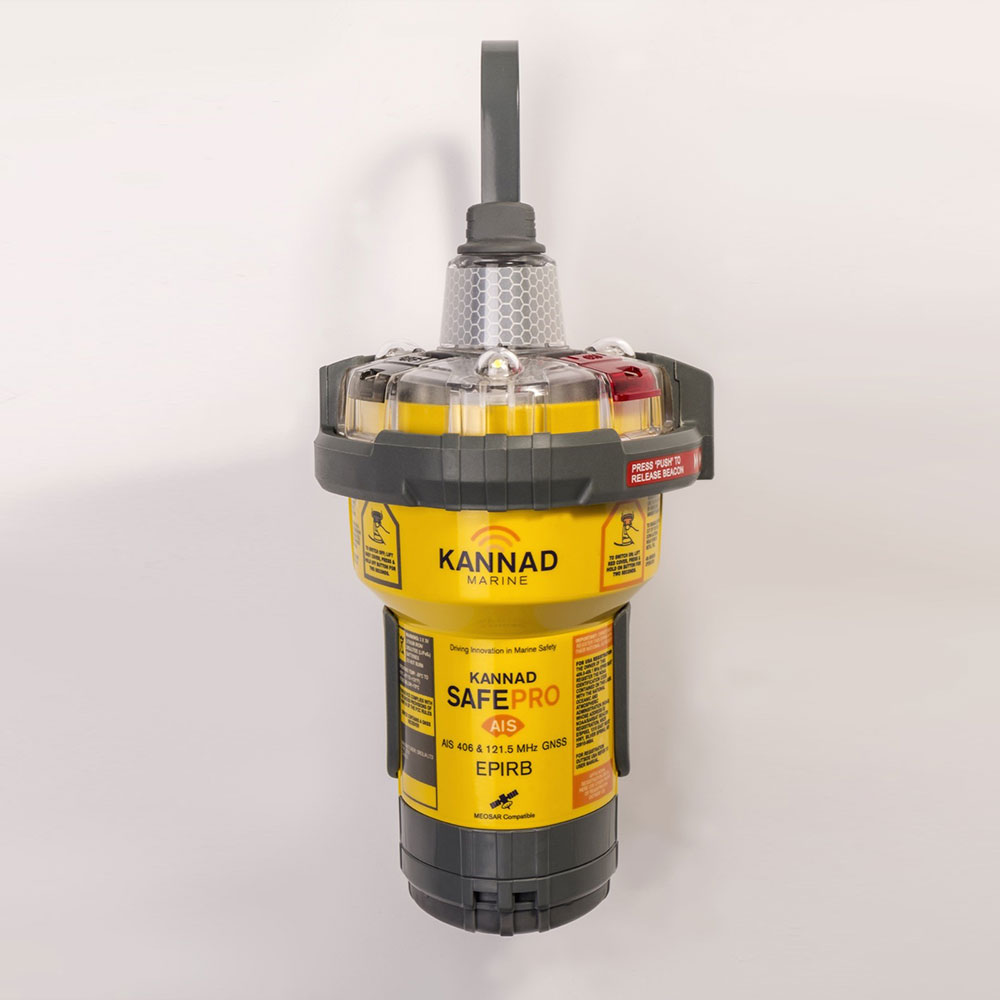

Kannad Marine SafePro AIS

The SafePro AIS EPIRB is the world’s first EPIRB to combine the global 406MHz professional search and rescue alert, with the localised locating and tracking power of AIS. With the added benefits of dual GNSS including Galileo and GPS, it is one of the world’s most powerful EPIRBs.

Rugged, multi GNSS 406MHz EPIRB with both GPS and Galileo receivers, unique inbuilt AIS, optimised for new MEOSAR system


Operating Frequencies:

  • 406MHz
  • 121.5MHz
  • Multi GNSS
  • AIS

Features

  • Built in AIS
  • Multi GNSS including Galileo
  • Accidental activation protection
  • Rugged construction optimised for commercial environments
  • Hands free carry strap
  • 360-degree strobe
  • Comes with safety bracket
  • 10-year battery life
  • Sealed Electronic Unit
  • Sealed Battery Unit

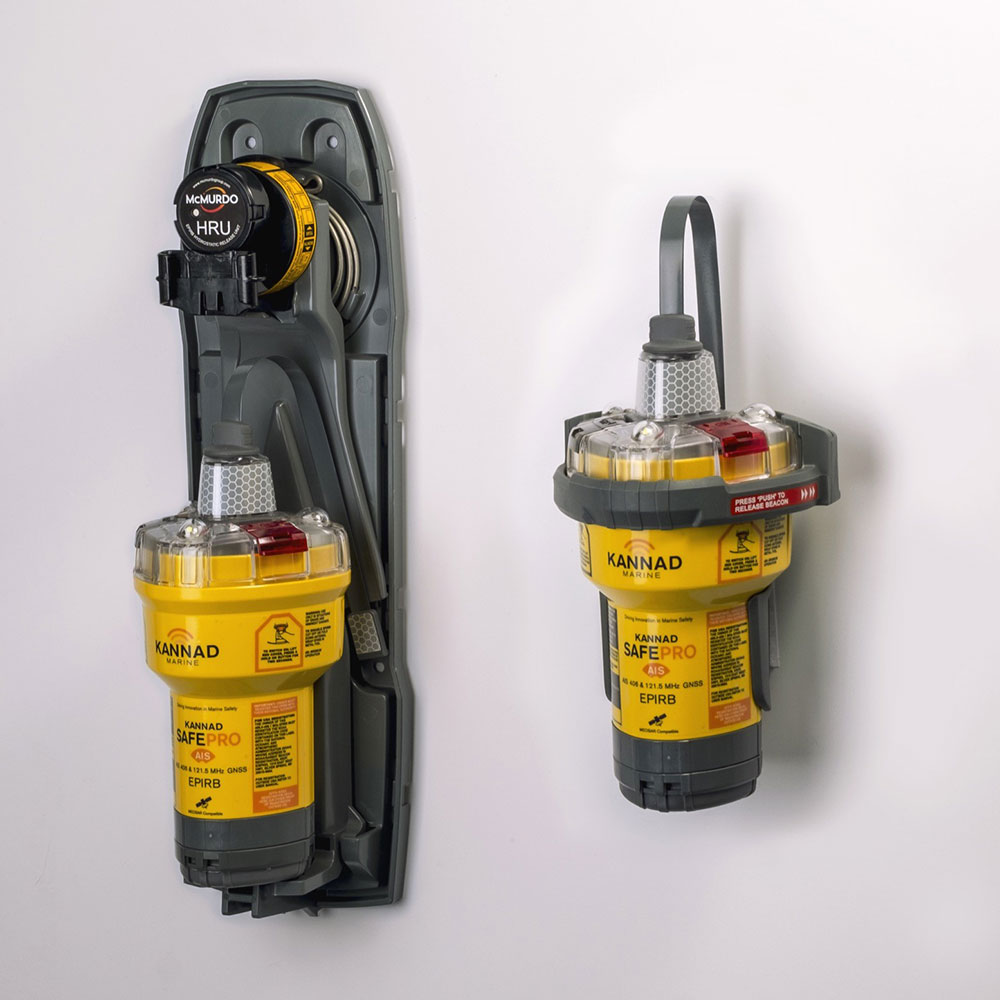

  • Manual/Auto release options

406 MHZ TRANSMITTER

Frequency 406.040 MHz + 1kHZ
Power output 5 W nominal
Modulation Phase (16KOG1D)

121.5 MHZ TRANSMITTER

Frequency 121.5 MHz + 3 kHz
Power output 100 mW nominal
Modulation Swept tone AM (3K20A3X)

AIS TRANSMITTER (SEE NOTE 1)

Frequencies 161.975 MHz (AIS1); 162.025 MHz (AIS2)
Power output 1 W nominal
Modulation Phase (16KOGXW)

GNSS RECEIVER (SEE NOTE 2)

Frequencies1575.42 MHz (GPS, Galileo);
1602.00 MHz (GLONASS)

Constellations GPS, GLONASS, Galileo
Sensitivity -167 dBm minimum
Satellites tracked 72 channel

STROBE LIGHT

Type 3 high intensivity LEDs
Light output 0.2 cd minimum
Flash rate 23 flashes per minute

BATTERY

Type Lithium iron disulphide
Operating life 48 hours minimum
Shelf life (in-service life) 10 years typical in service (see Note3)

ENVIRONMENT

Operating temperature -20 °C to +55 °C (-4° F to +131° F)
Storage temperature -30 °C to +70 °C (-22° F to +158° F)
Automatic release depth 4 m maximum

DIMENSIONS (EPIRB)

Weight 710 g
Height/Width/Depth 423x104x103 mm (incl. antenna)
Length of antenna 206 mm

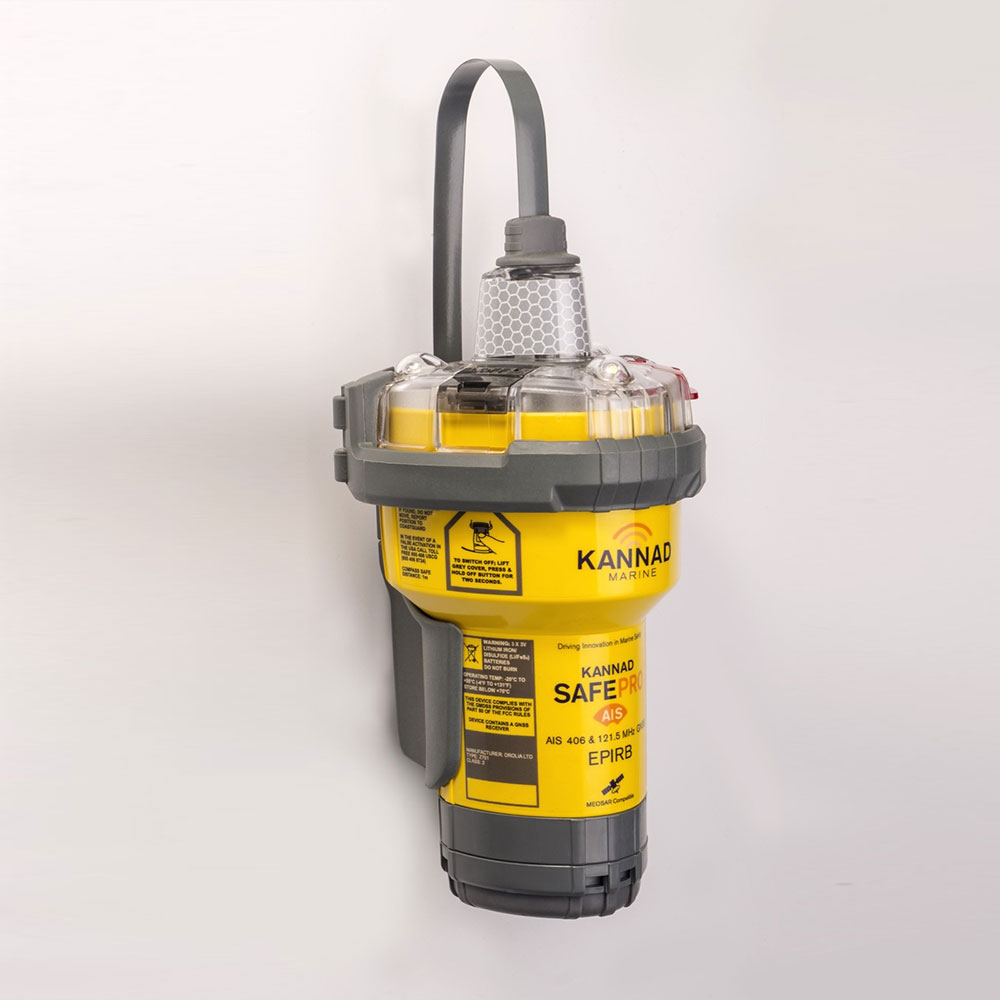

DIMENSIONS (MANUAL BRACKET)

Weight 110 g
Height/Width/Depth 270x125x121 mm

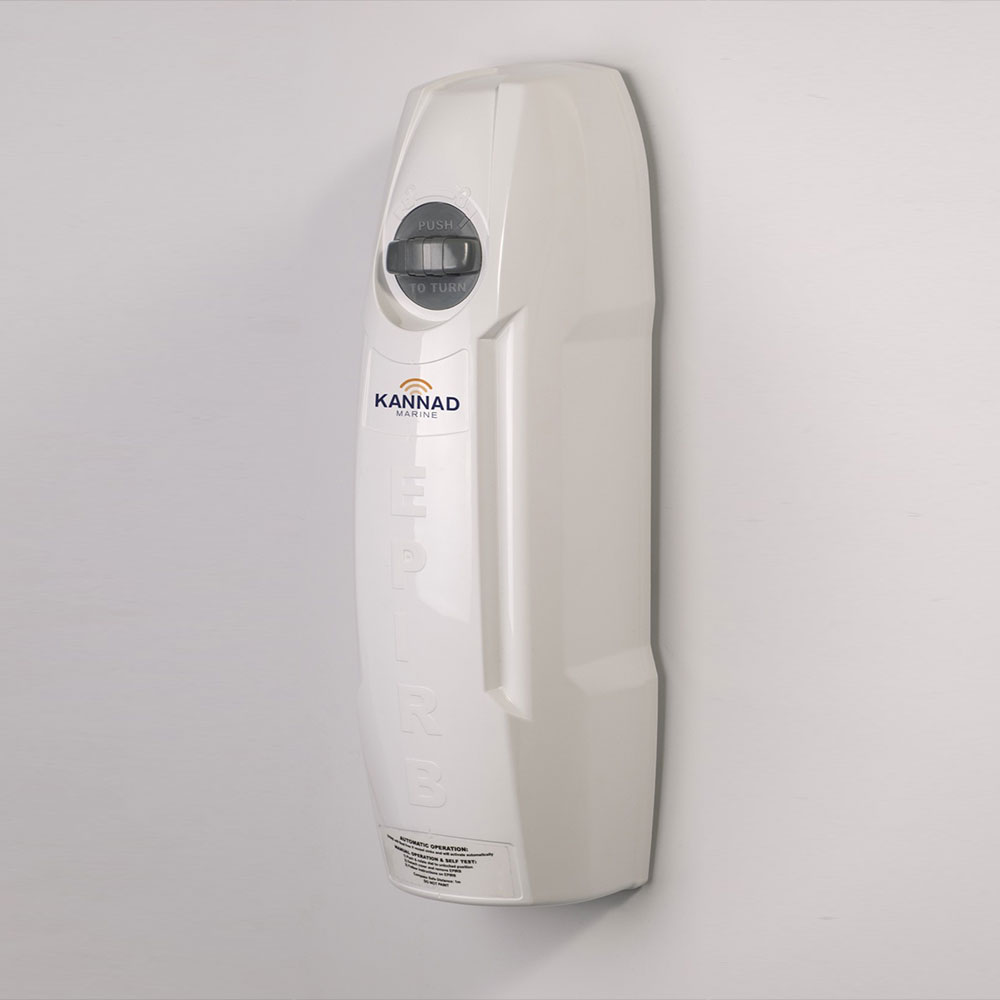

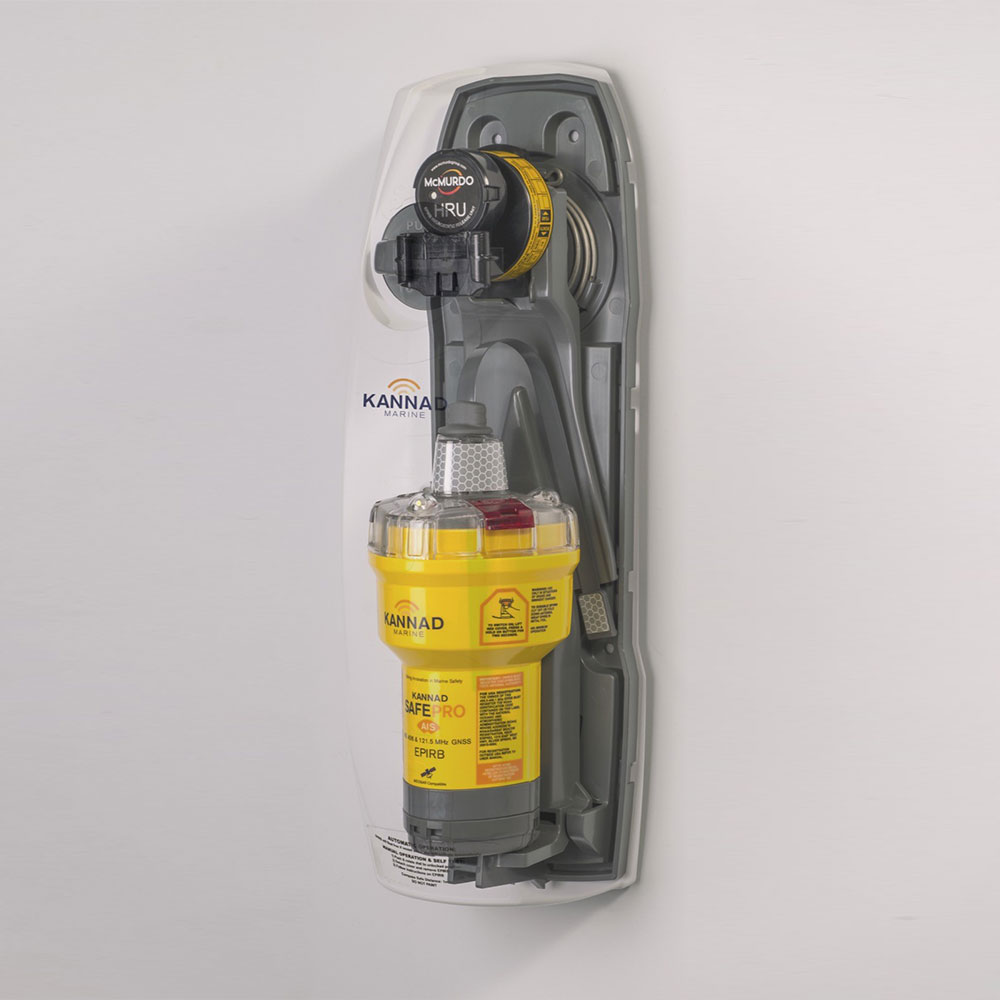

DIMENSIONS (FLOAT FREE ENCLOSURE)

Weight 1075 g
Height/Width/Depth 416x126x132 mm

STANDARTS APPLIED (SEE NOTE 4)

International standardsDependant on variant
IEC 61097-2; IEC 60945 incl. Corrigendum1; Industry Canada RSS-287; AS/NZS 4280.1;
IMO MSC/Circ. 862MO regulationsA.662(16); A.694(17); A.810(19); A.814(19)

COSPAS-SARSAT C/S 1.001 C/S T.007
Europe MED (wheelmark)
USA USCG & FCC; FCC ID; TBA;
4 7 CFR Parts 80, 2;

PART NUMBERS

Kannad Safe Manual EPIRB 23-001-014A
Kannad Safe Auto EPIRB 23-001-514A
Kannad SafePro Manual EPIRB 23-001-012A
Kannad SafePro Auto EPIRB 23-001-512A
Kannad SafePro AIS Manual EPIRB 23-001-011A
Kannad SafePro AIS Auto EPIRB 23-001-511A

NOTE 1: AIS is available on the SafePro AIS model only
NOTE 2: GNSS is available on the SafePro and SafePro AIS models only
NOTE 3: As a responsible manufacturer, Seas Of Solution recommends a 5-year health check at the nearest Kannad Marine approved service agent. Shore-based maintenance mandated vessels, battery health check or replacements should be carried out in accordance with flag Administration requirements and not exceeding 5 years.
NOTE 4: Approvals for the various standards is pending
