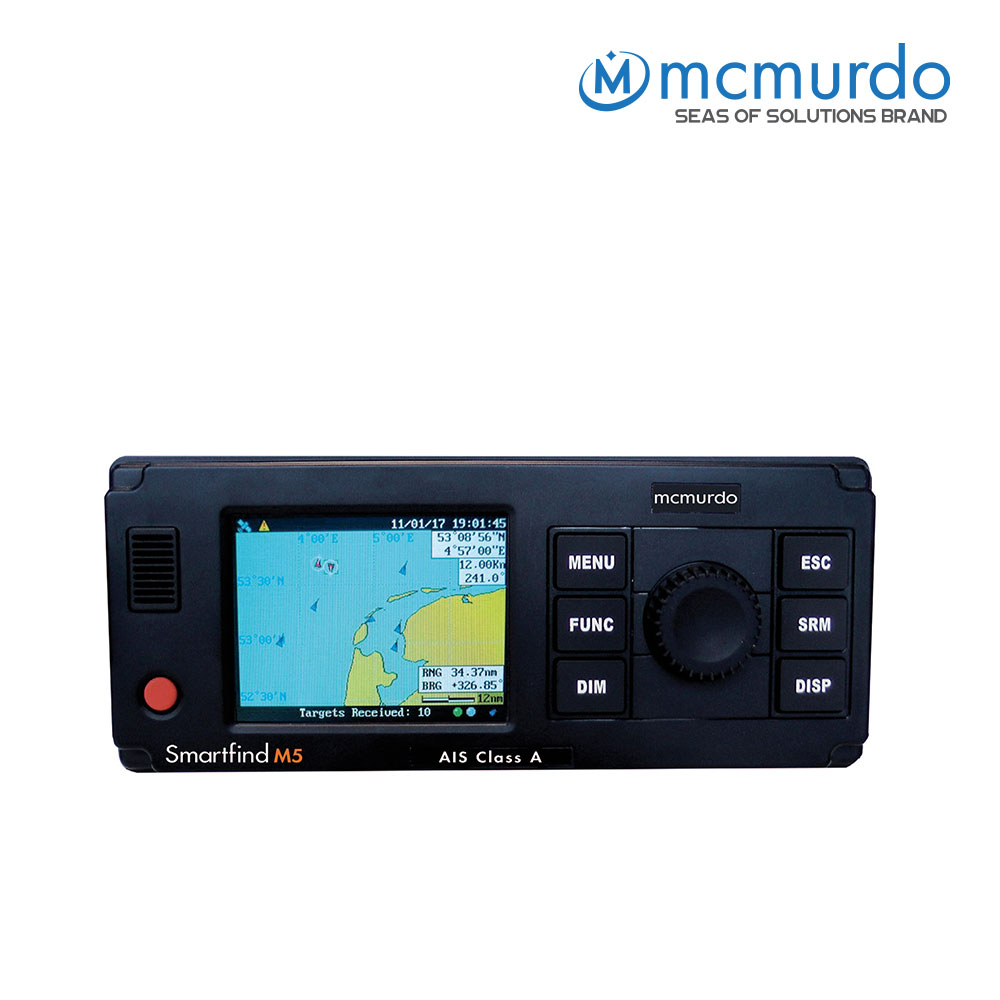

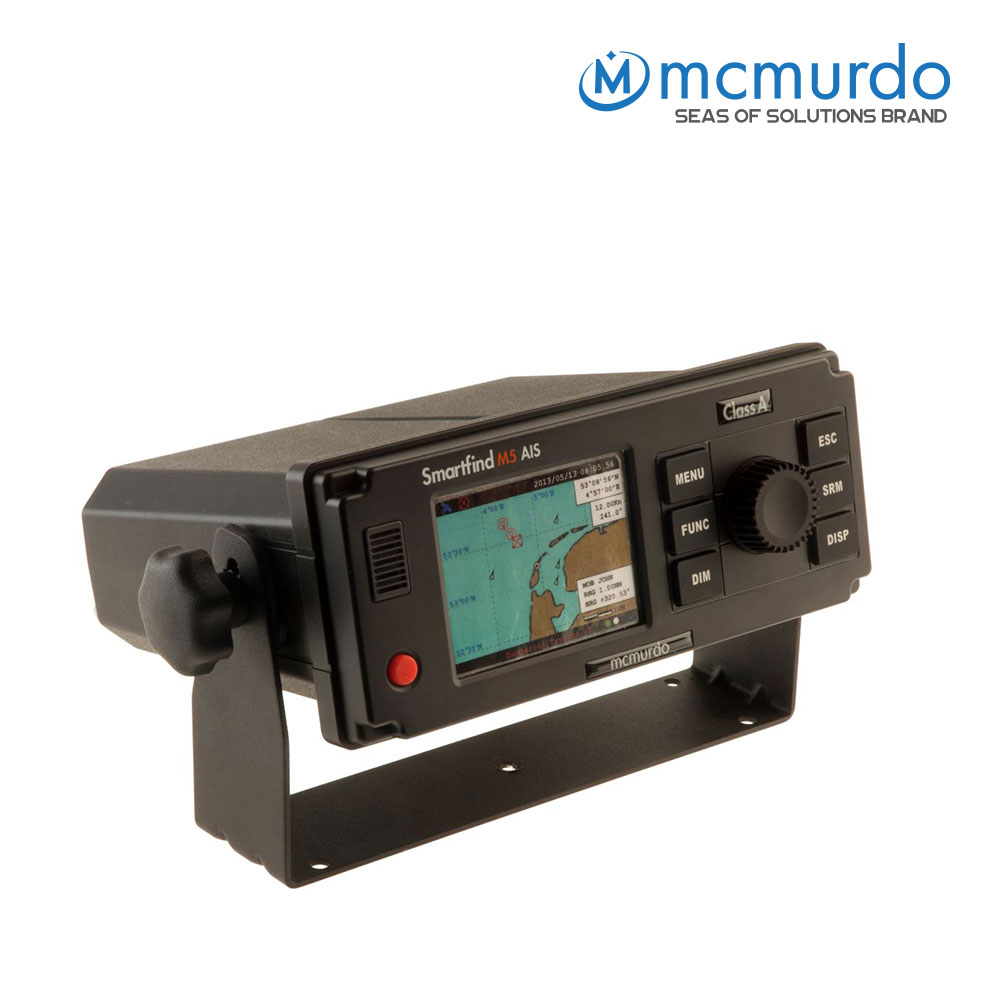

McMurdo SmartFind M5 AIS Class A Transponder

Features AIS MOB SART alarm to aid MOB recovery and provides automated “ship to ship” and “ship to shore” navigation communication.

Features

  • Compact, low cost solution
  • Meets EU Fishing Mandate requirements for Class A shipborne AIS transponders
  • 3.5” colour LCD display including embedded coastline map
  • Target list and radar overview displays
  • Unique AIS MOB and AIS alarm function
  • Optimised for use with McMurdo S10 and S20 personal AIS beacons
  • “Buddy List” of crew AIS Beacon IDs allows easy identification of crewmember in distress
  • NMEA0183, NMEA2000 and USB interface to ECDIS, ECS and chart plotting systems
  • Includes GPS antenna
  • Optional remote MOB/Alarm sounder
Standards: Meets the requirements of the international standards for Class A Shipborne AIS systems. IMO Resolution A.694(17), IMO MSC.74(69) Annex 3, IMO Resolution MSC 191(79), ITU-R M.1371-5 (Class A) (2014), ITU-R M.1084-5 (2012), ITU-R M.825-3 (1998), IEC 61993-2 Ed. 3 (2018), IEC 61108-1Ed. 2 (2003), IEC 60945 Ed. 4 (2002) incl. Corrigendum 1 (2008), IEC 61162-1 Ed. 5 (2016), IEC 61162-2 Ed. 1 (1998), IEC 62288 Ed. 2 (2014), IEC 62923-1/-2 BAM.
Type Approvals: Marine Equipment Directive (MED) 96/98 EC, 2011/75/EU, 2012/32/EU, 2014/90/EU as amended by IR (EU) 2020/1170. USA FCC, Canada I.C., WSV – Inland waterways
Power consumption: 9W average, 65W peak @ 12V DC
Power supply requirements: 12/24 VDC
Default Frequencies: AIS1 161.975 MHz, AIS2 162.025 MHz
DSC channel 70: 156.525 MHz

AIS TRANSCEIVER

Power output: 12.5 Watt / 1.0 Watt
Frequency range: 156.025-162.025 MHz

DSC RECEIVER

Frequency range: VHF Channel 70 (156.525 MHz)

CONNECTION INTERFACE

VHF antenna: PL259, 50 Ohms
GNSS antenna: TCN, 50 Ohms, DC Power, Mini USB, 37 pin data connector.
Interface ports: RS-422, IEC 61162-1,2
3 x navigation sensor input ports SEN1, SEN2, SEN3 and SEN4
2 x Bi-directional input/output ports MAIN and AUX/Pilot
1 x Bi-directional input/output port LR (Long Range)
1 x DGNSS correction input
1 x NMEA 2000
Alarm relay output
Integral GNSS: 50 channel GPS receiver, SBAS, MSAS, WAAS, GAGAN and EGNOS enabled.
Supports DGPS correction by AIS msg 17 or RTCM input port.
Provides UTC and fallback navigation position for AIS.

CONTROLS

Display: 3.5” 320 x 240 colour TFT LCD
Backlight: Multi level
Viewing Mode: Map outline, Radar view, Target List, Message views.
Controls: 6 keys, Multi-Function Knob
Menu language options include: French, Spanish, German.

ENVIRONMENTAL

Operating temperature: -15 o C to +55 o C
Storage temperature: -20 o C to +70 o C
General: IEC 604945 protected category
Control unit: IPX2

PHYSICAL

Width x Height x Depth: 261 x 184 x 102 mm
Mounting: Desk bracket and panel fixing kit included
Weight: 2.5 kg

BREAKOUT JUNCTION BOX

Screw termination connection block.
Width x Height x Depth: 165 x 55 x 85 mm

GPS ANTENNA

Size: Diameter 90.8 mm x 104.7 mm high
Mounting: 11/4 inch thread
Cable 10m, connector (fitted): TNC 50 Ohms

PILOT PLUG BOX

IMO compliant socket with 2m cable
Width x Height x Depth: 104 x 60 x 40 mm
